How to Measure Solar Panel Output: 3 Tools Every Owner Needs in 2026

Electricity bill July 2026 up 23% nationally. Summer peaks brutal. You installed solar to escape.

But question no one asks until month 3: is system actually producing what promised?

If you do not measure solar panel output, flying blind. Will not know if dust, shade, or loose wire stealing $40 per month. Let’s fix today.

What Is Solar Panel Output and Why Measure?

Solar panel output is amount of power panels producing right now. Measure in watts.

Think like speedometer in car. Sun is engine. Panels are wheels. Solar panel output tells how fast really going.

Two numbers matter:

• Voltage – V – electrical pressure
• Current – Amps – flow of electricity

Multiply them = watts. Watts over time = kilowatt-hours – what utility bills you for.

Why measure? Panels do not fail loudly. Fade slowly. Dirty panel can drop 15% output. Bad connection can drop 30%. If you check solar panel output weekly, catch problems in days, not months.

App may say OK, but real clamp meter can show one string down 40% from melted MC4. App never tells. Tools do.

3 Tools You Need

You do not need truck full of gear. These three cover everything from quick spot-check to long-term tracking.

Tool 1: Digital Multimeter – Hands-On Truth Teller
Basic health check. Every owner should own. Cost $25-$60.

What it does: Measures voltage and checks if panel alive. Disconnect panel, point probes at positive and negative leads, read open-circuit voltage – Voc.

Best for: Quick diagnosis, confirming dead panel, checking wiring.
How to use: Set to DC Volts – V with straight line. Test in full sun around noon. Compare reading to label on back of panel. If says 24.3V Voc and you get 18V, something wrong.

Tip: Do not try measure current with cheap multimeter. You will blow fuse. Use Tool 2 for that.

Tool 2: Clamp Meter + Solar Monitoring System – Daily Driver
Combo where you actually track solar panel output daily.

A) DC Clamp Meter: Measures current without touching bare wire. Just clamp around ONE wire. Super safe. Good DC clamp $45-$90.

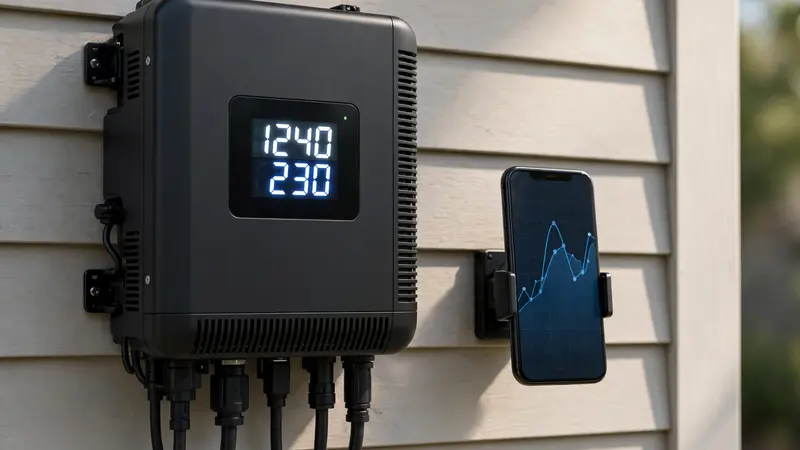

B) Monitoring System: Brain. Most modern inverters – Enphase, SolarEdge, Fronius – have Wi-Fi built in. Shows real-time solar panel output, daily energy, history on phone.

Why need both:
Monitoring app tells WHAT system doing. Clamp meter tells WHY.

If app shows low solar panel output at noon, grab clamp meter.
Check each string. String 1: 8.2 amps. String 2: 1.3 amps. Boom, found weak string.

Look for clamp meter that does DC amps, not just AC. Mistake most people make.

Tool 3: Irradiance Meter – Pyranometer + App – Pro Validator
Wonder: Is low output because of panels or cloudy day? This answers.

Irradiance meter measures sunlight itself in watts per square meter – W/m2. At perfect noon sun, should get about 1000 W/m2.

If meter reads 1000 W/m2 but solar panel output 20% below rated, panels dirty or degraded. If reads 450 W/m2, just hazy day. Do not panic.

Do not need $500 lab device. $130 handheld solar power meter or $30 app sensor like SolarMeter works for homeowners.

System Types and How to Measure

Grid-tied easiest. Inverter app does 90% work. Off-grid need learn multimeter. No utility to catch you.

Benefits vs Drawbacks

Benefits:

• Save money fast. Finding one underperforming panel can recover $150-$300 per year.
• Keep warranty valid. Most brands require proof of regular output checks.
• Spot safety issues. Hot spots and bad wiring show as weird voltage drops first.
• Bragging rights. Seeing solar panel output peak at 5.2kW on clear day satisfying.

Drawbacks:

• Another thing to learn – 30 minutes to get comfortable.
• Cheap tools lie. $15 multimeter can be off 5-8%. Spend little more.
• Data can make anxious. Output fluctuates all day. That is normal. Do not obsess over 5-minute drops.

Cost and ROI in 2026

Tool cost one-time:
Decent digital multimeter: $35
DC clamp meter: $65
Handheld irradiance meter: $129
Total for all 3: $229
If already have modern inverter with monitoring, skip irradiance meter at first and start with $100.

System ROI Check – Are You Getting What Paid For?
Example 6kW system in Texas. Cost $15,000 after tax credit 2026.

Expected Output: Texas gets about 5.5 peak sun hours. 6kW x 5.5 hours x 0.78 – system losses = 25.74 kWh per day.

Actual Measured: Monitoring app shows average 21 kWh per day.

Gap: 4.74 kWh per day missing. That is 18% loss.
Lost Money: 4.74 kWh x $0.16/kWh x 365 = $276 per year lost.

With $100 clamp meter, find one dirty string causing loss. Clean it. Tool pays for itself in 4 months. Every year after profit.

If solar panel output matches expected, ROI stays on track: $15,000 system saving $1,800/year = 8.3-year payback, then 17+ years free power.

Step-by-Step: How to Install Measurement Setup Safely

This is how to install measurement setup, not panels. Do at noon clear day.

Step 1: Safety First
Turn off AC disconnect on inverter. Wear gloves. Never unplug MC4 under load. Can arc.

Step 2: Set Up Monitoring
Connect inverter to Wi-Fi. Open app – Enphase Enlighten, SolarEdge, etc. Check you see live solar panel output in watts. This baseline dashboard.

Step 3: Take Reference Measurement
Use multimeter. Set to DC Volts. Measure open-circuit voltage of one panel. Write down. Then use clamp meter around one DC wire to read amps. Volts x Amps = Watts for that string.

Step 4: Add Irradiance Context
Place irradiance meter flat, next to panels, same angle. Take reading. Write next to watts reading. Now you know: At 980 W/m2 sun, system makes 4,850W.

Do once per month and log in phone notes. That is health record.

5 Fatal Mistakes to Avoid

1. Measuring at Wrong Time
Do not measure at 8am and freak out. Always compare apples to apples. Measure solar panel output between 11am and 1pm local time. That is peak.

2. Clamping Both Wires at Once
If clamp meter around both positive AND negative together, read zero. Physics cancels out. Clamp around ONE wire only. #1 beginner error.

3. Trusting App Alone
Inverter apps estimate. Can be off 3-7%. Also miss DC-side issues. Use app for trends, but confirm low output with physical clamp meter.

4. Ignoring Temperature
Panels hate heat. Panel rated 400W at 77°F will only make about 360W at 110°F on roof. That is normal. If measure on scorching day, expect 10-12% less. Not failure.

5. Not Cleaning Before Measuring
Bird poop, dust, pollen. In dry areas 10-25% drops from dirt alone. Do not diagnose bad panel before you wash it. Hose off early morning, let dry, then measure solar panel output again.

Conclusion

Electric bill not going down in 2026. But reliance on it can.

You do not need to be engineer to take control. With three simple tools, you can measure solar panel output like pro, catch problems early, and make sure every dollar invested comes back.

This weekend, take 15 minutes. Check app, grab multimeter reading, log it. That is it.

FAQ

Q1: How often measure solar panel output?
Check inverter app weekly – 10 seconds. Do physical check with multimeter and clamp meter once per month and after big storm. Keeps ahead of 95% issues.

Q2: What is good output for home?
Typical 6kW home system US, expect 24-30 kWh per day summer and 12-18 kWh winter. If consistently less than 70% on sunny days, solar panel output needs troubleshooting.

Q3: Can I measure at night?
No. No sun, no output. Panels should read 0 watts at night. If app shows power at night, clamp meter picking up AC interference or inverter measurement glitching. Check during day.

Q4: Need all three tools to start?
Not at all. Start with inverter free app plus $65 DC clamp meter. Combo lets you measure 90% what matters. Add multimeter and irradiance meter later if love data or live off-grid.
