Solar Inverter Error Codes: 7 Common Codes and How to Fix Them in 2026

Walking up to solar setup, expecting to see system quietly generating clean energy, only to be greeted by flashing red warning light and cryptic code on screen.

Frustrating moment, but do not panic — inverter not necessarily broken. Inverters built with sensitive protective systems that automatically shut off at first sign electrical irregularity. Think of error code as system way hitting pause to protect internal electronics and home wiring.

Understanding warnings can save hours downtime, eliminate unnecessary service fees, and help get power flowing again quickly. Here quick-reference guide to diagnosing and fixing seven most common solar inverter error codes.

1. PV Overvoltage – High DC Input

What Means
Incoming voltage from solar panels higher than maximum safe limit inverter designed to handle.

Likely Causes

• Unusually cold, bright days – panels generate higher voltage in freezing temperatures.
• Incorrect string sizing during initial installation.
• Grid voltage spikes pushing panel output higher.

Fast Fix

• Check weather: If extremely cold, sunny morning, issue may resolve itself as temperatures warm later day.
• Perform hard restart: Turn off DC isolator – solar input – wait 5 minutes, turn back on.
• Inspect panel layout: If error occurs frequently on normal days, contact installer to reconfigure strings.

2. Isolation Fault / Ground Error

What Means
Inverter detected electrical current leaking to ground somewhere in DC circuit. Critical safety feature to prevent shock or fires.

Likely Causes

• Damaged, cracked, degraded cable insulation on roof.
• Water or moisture inside MC4 connectors or junction boxes after heavy rain.
• Rodents chewing through wiring insulation.

Fast Fix

• Wait for moisture to dry: If error appeared right after heavy rain, give system few hours sunshine to dry before check if error clears.
• Visual inspection: Safely inspect visible wiring near inverter and roof for obvious cuts, pinches, loose connectors without touching bare wires.
• Do not attempt DIY internal fixes: If persists, keep DC isolator off and call certified technician to perform insulation resistance test.

3. System Overload – AC Overload

What Means
Household demand drawing more power than inverter can continuously supply.

Likely Causes

• Running multiple high-wattage appliances simultaneously – AC, water heaters, EV chargers.
• Sudden surges from inductive loads – heavy motors starting up.

Fast Fix

• Shed heavy loads: Immediately turn off high-power appliances.
• Reset inverter: Turn off AC main breaker connected to inverter, wait 30 seconds, flip back on.
• Monitor power draw: Stagger appliance use during peak solar hours to stay within continuous watt rating.

4. Over-Temperature Fault

What Means
Inverter internal operating temperature exceeded maximum safe heat threshold. To protect internal components from melting, unit shuts down or throttles output.

Likely Causes

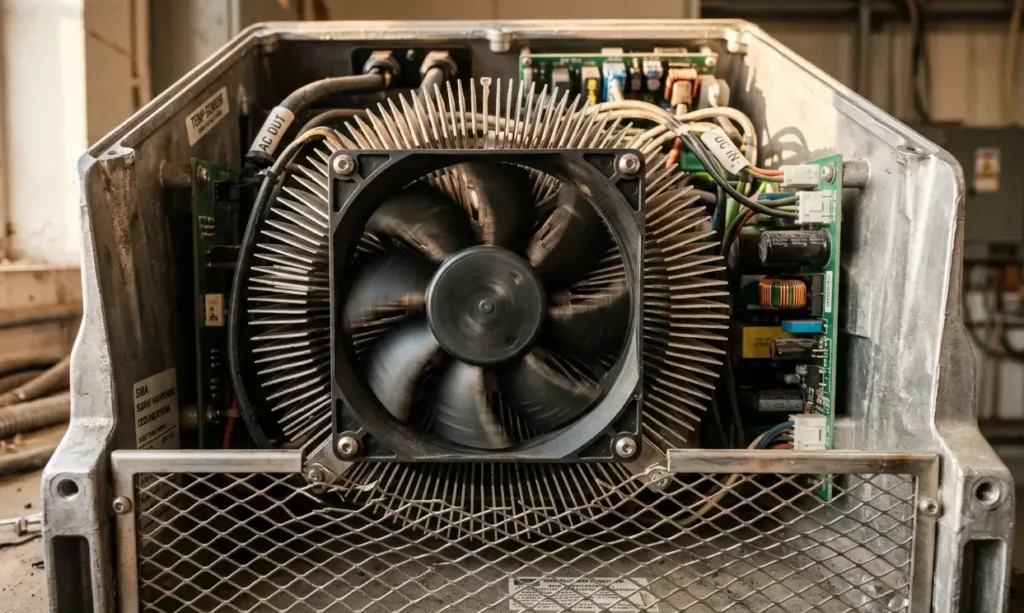

• Blocked cooling vents or failed internal cooling fan.
• Inverter installed in direct, unshaded sunlight or unventilated enclosure.
• Dust, cobwebs, debris buildup on heat sink fins.

Fast Fix

• Clear obstructions: Ensure at least 15–20 cm – 6–8 inches – clear space around all sides for air circulation.
• Clean heat sink: Use soft brush or compressed air to remove dust from cooling fins and vents.
• Provide shade: If installed outdoors in direct sunlight, consider adding protective shade awning above unit.

5. Grid Lost / No Grid Detected – AC Grid Fault

What Means
Inverter cannot detect active AC signal from utility grid.

Likely Causes

• Local power outage in neighborhood.
• Tripped AC circuit breaker or blown fuse in main panel.
• Grid voltage or frequency fluctuating outside operational limits.

Fast Fix

• Check main panel: Inspect main switchboard to see if solar AC breaker tripped.
• Verify neighborhood power: Check if neighboring houses or streetlights have power to rule out local utility outage.
• Wait out grid stabilization: Grid-tied inverters legally required to shut down during outages – anti-islanding. Once utility returns, inverter will run countdown – 60–300 seconds – before reconnecting automatically.

6. DC Bus Voltage Fault – High/Low

What Means
Internal high-voltage DC circuit inside inverter operating outside designated voltage range.

Likely Causes

• Transient surges caused by nearby lightning or grid fluctuations.
• Internal capacitor or component degradation inside aging units.
• Rapid changes in solar irradiance – sudden clouds passing over intense sunlight.

Fast Fix

• Power cycle system: Full reboot – turn off AC breaker first, then DC isolator; wait 5 minutes; turn on DC isolator first, then AC breaker.
• Monitor recurrence: If error clears and occurs rarely, likely temporary spike.
• Contact support: If code returns immediately upon startup, internal hardware may need service.

7. Battery Communication Fault

What Means
Inverter lost communication with energy storage Battery Management System – BMS.

Likely Causes

• Loose, damaged, unplugged communication cables – CAN/RS485.
• Incorrect dip-switch settings on off-grid/hybrid batteries.
• Outdated firmware on inverter or battery.

Fast Fix

• Check physical connections: Ensure communication cable between battery and inverter firmly clicked.
• Restart in order: Turn off inverter and battery completely. Turn battery back on first, wait indicator lights stabilize, then turn inverter on.
• Verify battery state: Ensure battery not entered deep sleep mode due to low charge.

Quick-Reference Troubleshooting Cheat Sheet

⚠️ Crucial Safety Warning
High Voltage Hazard: Solar systems operate on high-voltage DC, which remains energized whenever sunlight strikes panels.

NEVER open internal enclosure of inverter or attempt to splice live DC wiring yourself.

If power cycle does not resolve issue, or if smell burning insulation, immediately turn off AC breaker and DC isolator, contact certified solar electrician.

Conclusion

Seeing error code on inverter nerve-wracking, but in most cases simply system doing job to protect investment. By following quick diagnostic steps — clearing vents, checking breakers, performing proper system power cycle — you can resolve majority daily errors in just few minutes.
